Das bahnbrechende Multifunktionsmesssystem von RION
RIONNOTE - Kompaktes Design, einfache und intuitive Bedienung mit drahtlosen Verbindungen

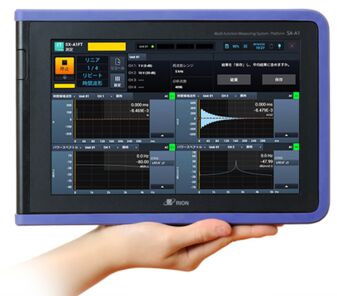

RIONOTE is combining the newest technology with the traditional virtues of RION: quality, ease of use and economical sense RIONOTE consists of a Main Control Unit SA-A1 which can be configured to up to 16 channels and allowing you to perform measurements anywhere wireless. The Main Control Unit is easy and intuitive to operate, with the dedicated program of your choice. All on a large colour touch screen. RION will continuously develop both programs and hardware for this measuring system of the future.
Einsatzbereiche
- Machine Vibration Measurement System
- Sound/Vibration vs. Rotation Speed Measurement System
- Multi-Channel Measurement System for Noise
- Natural Frequency Measurement System
- FFT Analysis and Simultaneous Waveform Recording
- Wireless Measurement System Eliminates Need for Cabling and Allows Remote Operation
- Wireless Measurement System Helps to Ensure Safety at Hazardous Measurement Sites
- Machine Vibration Measurement System Using Vibration Analyzer Program
Key-Features
- Color LCD touch screen allows intuitive operation.
- Flexible software configuration / customizable Apps
- B5 size ideal for measurements in the field.
- Light weight: only 1.2 kg including amplifier and battery.
- Removable lithium-ion battery can be exchanged in the field.
- IPX54 waterproof rating for main unit.
- Support for wireless measurements eliminates need for cumbersome cabling on site.
Was ist ein RIONOTE
Lernen Sie die Möglichkeiten des RIONOTE in 2:30 Minuten kennen!
YouTube Video:
Sie haben der Einbindung von Youtube Videos nicht zugestimmt. Deshalb wird Ihnen das Video an dieser Stelle nicht angezeigt.
Wenn Sie das Video sehen möchten, klicken Sie hier um Ihre Cookie-Einstellungen zu bearbeiten:
Software
YouTube Video:
Sie haben der Einbindung von Youtube Videos nicht zugestimmt. Deshalb wird Ihnen das Video an dieser Stelle nicht angezeigt.
Wenn Sie das Video sehen möchten, klicken Sie hier um Ihre Cookie-Einstellungen zu bearbeiten:
FFT analysis
RIONOTE enables you to perform FFT analysis on multiple channels simultaneously. The results are shown in clear graphs on the large color screen, in real time, or from stored data when using the recall function. A marker allows you to scroll through the data, and enables the readout of the level of a frequency of interest.

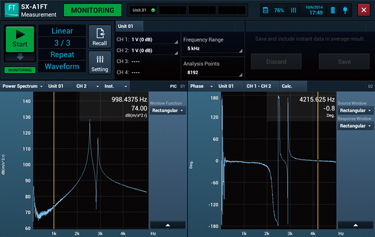

Transfer function
The transfer function represents the relation between an input signal and output signal in the frequency domain, allowing the determination of amplitude and phase.In this mathematical calculation category, the RIONOTE supports coherence function and cross spectrum processing.

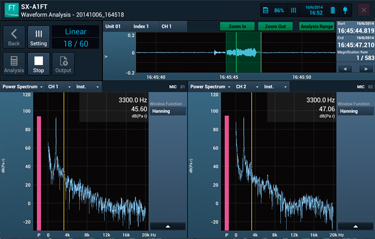

Waveform post processing
After completing waveform recording (as explained above), the stored waveforms can be displayed on the Main Control Unit's large screen, and played back by using the earphone jack output. Moreover, various secondary post processing functions for the waveform data are available in the Main Control Unit, including FFT analysis as shown in the screen example below.

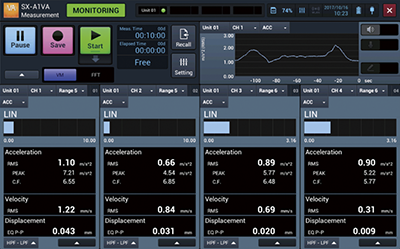

Vibration Analysis Program SX-A1VA
- All essential vibration measurement functions are provided, enabling equipment diagnosis and trend management for industrial machinery.
- The program also supports detailed diagnosis including FFT analysis and envelope processing.

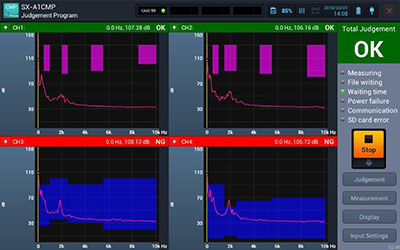

Judgement Program (Pass/Fail Evaluation)
- Allows setting threshold areas for FFT analysis results to determine pass/fail.
- Depending on the evaluation purpose, a suitable sensor can be selected from various types of microphones or accelerometers.
- Operation control from a PLC is also supported as an option (using the Ethernet connector of the RIONOTE).
Order Tracking Program CAT-SAA1-ORDTRK
Output the analysis results by connecting microphone, accelerometer as well as tachometer. Waveform recording enables reanalysis.
Interesse?
Sprechen Sie uns an:
Wir beraten Sie gern!
Wir beantworten Ihnen gerne alle Fragen zum RIONOTE. Rufen Sie uns einfach an oder senden Sie eine E-Mail. Weitere Produkte und Informationen finden Sie auch auf unserer Website www.norsonic.de.
Application Examples
Machine Vibration
Measurement System

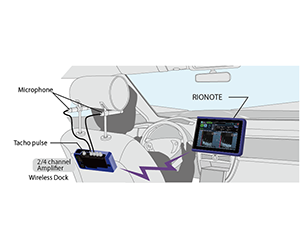

Sound/Vibration vs.
Rotation Speed Measurement System

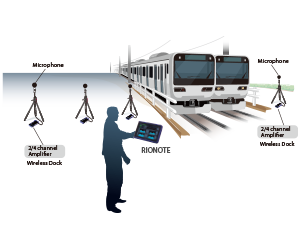

Multi-Channel
Measurement System for Noise

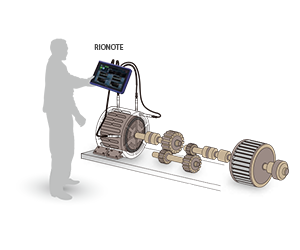

Natural Frequency
Measurement System
FFT Analysis and
Simultaneous Waveform Recording

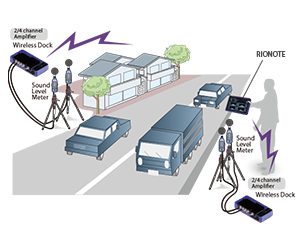

Wireless Measurement System
Eliminates Need for Cabling and
Allows Remote Operation
Wireless Measurement System
Helps to Ensure Safety at
Hazardous Measurement Sites

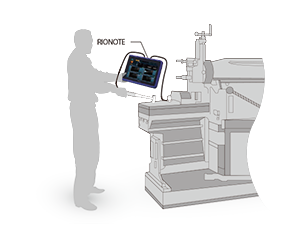

Machine Vibration Measurement System
Using Vibration Analyzer Program
